PA-600

4K 出力対応
高解像度出力対応機
Android11.0

4K 出力に対応
高解像度出力対応スペック!

Android11搭載
汎用的に使える
小型かつ高性能端末

Wi-Fi接続 WPA3/Wi-Fi6に対応し、4K 出力が可能なSTB
Android11搭載の高性能スペック

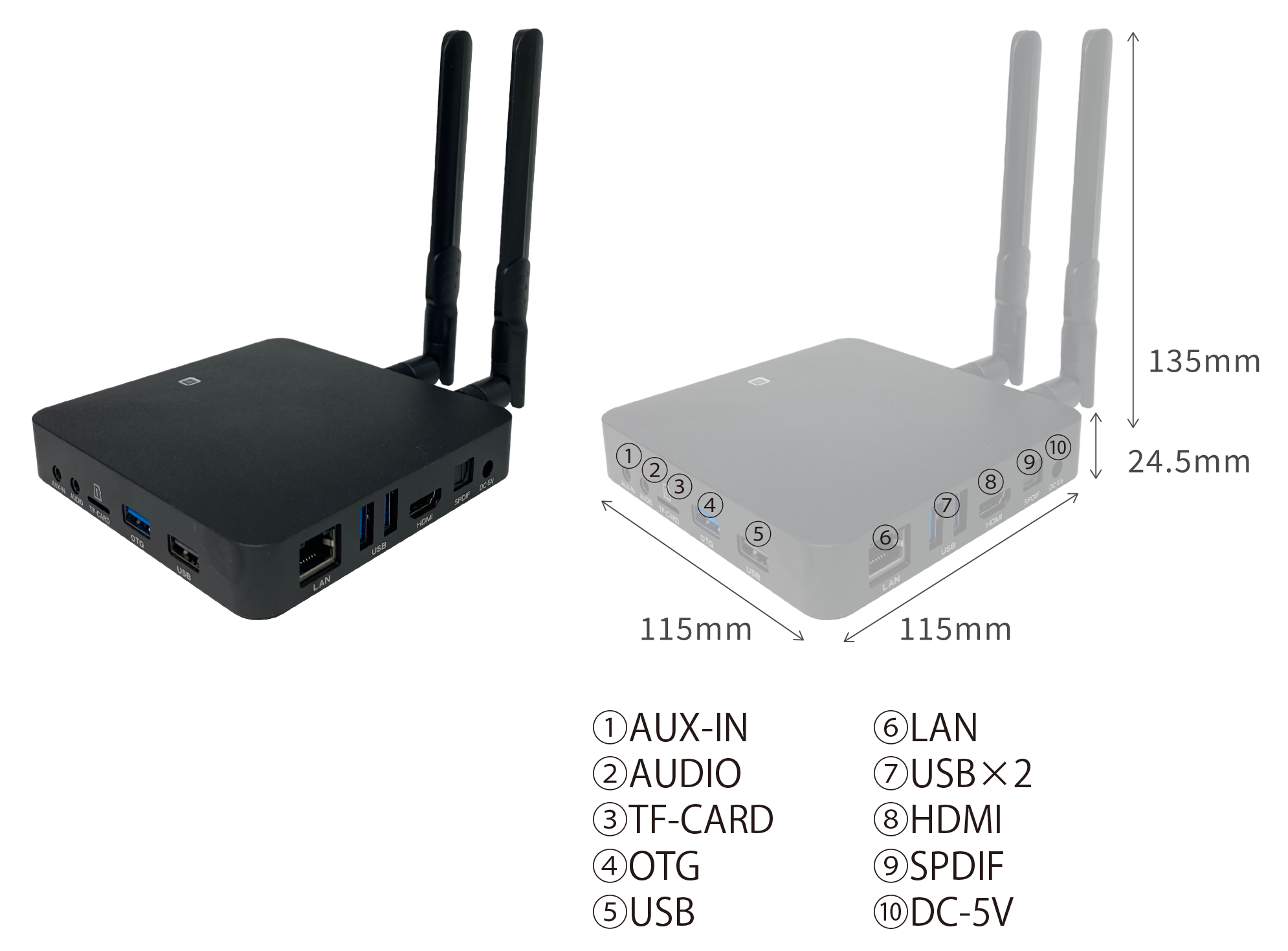

PA-600本体

付属リモコン​

Spec

ハードウェアスペック

OS
Android 11.0
言語
English, Chinese … Multi-Language support
チップセット
RK3568(Rockchip) CPU + 2.0G (64bit)
GPU
ARM Mali-G52 2EE GPU
拡張ストレージ
Support MicroSD(TF) card, Max to 32GB
SDRAM
LPDDR4 4GB
Nand Flash
32GB
Wi-Fi
2.4G/5G 802.11a/b/g/n/ac/ax 2T2R MIMO standard & WiFi 6
GPS
なし
Ethernet
1 x RJ45 LAN 1000M(Gigabit network)
Power Supply
DC 5V, 3A

インターフェース

HDMI
HDMI(2.1 and 2.0 ) to support maximum 4K output(HDCP2.2)
Bluetooth
Bluetooth 5.0 with LE technology
USB Port
2x USB 3.0 host ports, 1x USB 3.0 OTG port, 1x USB 2.0 port
Data Output
1 x SPDIF
AV Out
なし
Network
1 x RJ45 LAN Port
Power Supply
1 x DC Jack
Antenna
External DualBand WiFi Antenna

諸パラメーター

Operation Temperature
0~60℃
Storage Temperature
-10~60℃
Humidity Environment
5%-90%(No condensation)
Certificate
CE, FCC,TELEC,PSE

パッケージ

Dimensions
117*117*18.5mm
Net Weight
300g
Gift Box Size
162*162*80mm

対応コーデック

Media Parameter

Audio Container
MP3,AAC,WMA,RM,FLAC,OGG
Audio Out
Supports MP3, AAC, WMA, RM, FLAC, Ogg Built-in serial digital audio SPDIF/IEC958 output and PCM input/output Built-in stereo audio DAC, Stereo digital microphone PDM input Support concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Video CODEC
VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVCMP-10@L5.1 up to 4K*2K@60fps H.264 AVC HP@L5.1 up to4K*2K@60fps H264 MVC up to1080P@60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 5P/MP/AP up to 1080P@60fps AVS-P16(AVS+)/AVS-P2 jiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps(ISO-13818) MPEG-1 MP/HL up to 1080P@60fps(ISO-11172) Realvideo 8/9/10 up to 1080P WebM up to VGA Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixe resolution decoding(ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects Support *.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats
